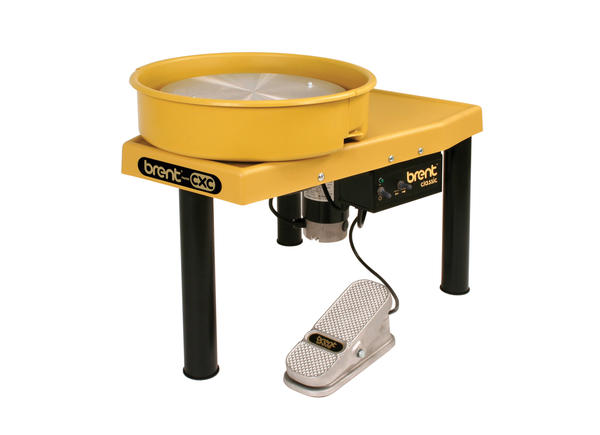

Brent CXC Pottery Wheel
The Brent CXC is a heavy-duty pottery wheel designed for ceramic artists who need exceptional power, stability, and long-term durability. With a powerful 1 HP DC motor and the ability to handle up to 300 pounds of clay continuously, the CXC is built for large forms, demanding production work, professional studios, schools, and ceramic artists who want a wheel that can grow with their work.
The CXC combines strong torque with smooth electronic speed control from 0 to 240 RPM. The wheel can rotate in either direction, allowing both right- and left-handed potters to work comfortably. Its 14-inch cast aluminum wheel head provides a generous throwing surface and includes two bat pins for convenient bat use.
One of the biggest advantages of the Brent CXC is its heavy-duty construction. The wheel features an all-steel frame and solid table designed to provide stability while centering and throwing large amounts of clay. Powder-coated legs improve durability and resistance to scratches and corrosion, making the CXC particularly well suited to busy studios and classrooms.
The Brent Classic Controller is designed for precise, consistent operation. Electronic torque control helps the wheel maintain its speed as the load changes, while electronic noise filtering provides quiet operation. The controller also includes easy-to-locate forward and reverse switches, a visible indicator light, and modular connections that simplify servicing the motor and foot pedal.
For potters who regularly work with large forms or simply want a powerful, dependable wheel for years of use, the Brent CXC is a serious professional pottery wheel. It combines high clay capacity, strong torque, durable construction, smooth speed control, and a 10-year warranty in a wheel built for demanding ceramic work.
Brent CXC Pottery Wheel Specifications
| Model |
Brent CXC |
| Manufacturer |
Brent |
| Voltage |
110V |
| Motor |
1 HP Permanent Magnet DC Motor |
| Amperage |
10 Amp |
| Continuous Clay Capacity |
300 lbs. |
| Speed Range |
0–240 RPM |
| Speed Control |
Electronic Foot Pedal |
| Wheel Direction |
Clockwise / Counter-Clockwise |
| Wheel Head Diameter |
14 inches |
| Wheel Head |
Cast Aluminum |
| Bat Pins |
2 included |
| Drive System |
6-Groove Poly-V Belt with Automatic Belt Tensioning |
| Frame |
All-Steel Construction |
| Foot Pedal |
Cast Aluminum with 4-Foot Cord |
| Warranty |
10 Years |
| Included Accessories |
Splash Pan and 14" Plast-i-Bat |
Additional Information
The Brent CXC is designed for potters who need more power and capacity than a standard studio wheel. Its 1 HP permanent-magnet DC motor and heavy-duty steel construction provide the stability and torque needed for large and demanding forms.
The Brent Classic Controller is designed to maintain optimal torque across the speed range, helping the wheel maintain consistent speed as the load changes. The forward/reverse control includes a neutral safety position to help prevent abrupt direction changes.
The CXC also features modular connections for the motor and foot pedal, making service and replacement easier over the life of the wheel. The automatic belt-tensioning system keeps the six-groove Poly-V belt properly tensioned for reliable operation.
The 14-inch cast aluminum wheel head includes two bat pins, while the included splash pan and 14-inch Plast-i-Bat provide useful accessories right out of the box.
Warranty: The Brent CXC is backed by a 10-year warranty.
